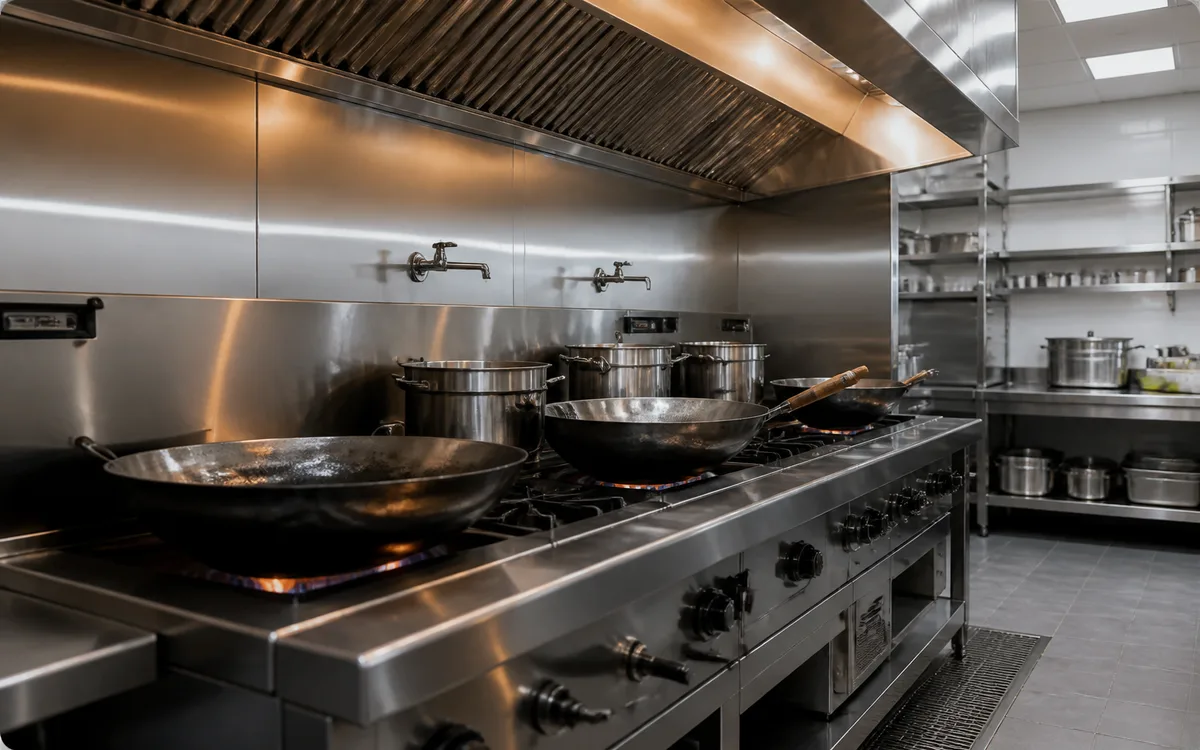

Stove Air Support
For commercial stoves, high-output burners, and combustion equipment that require steady air supply.
Products
CZR-PT Series Blower
Combustion air, heat equipment, and cooling
CZR-PT is used in commercial kitchen equipment, burners, hot-air equipment, and local cooling scenarios. It is suitable when stable air supply needs to fit limited installation space.
- 180W - 1100W
- Power Range
- 65 - 75 mm
- Inlet and Outlet
- Aluminum Alloy
- Impeller
- Copper Windings
- Motor
Applications
CZR-PT Series can be checked against the following operating scenarios before final model confirmation.

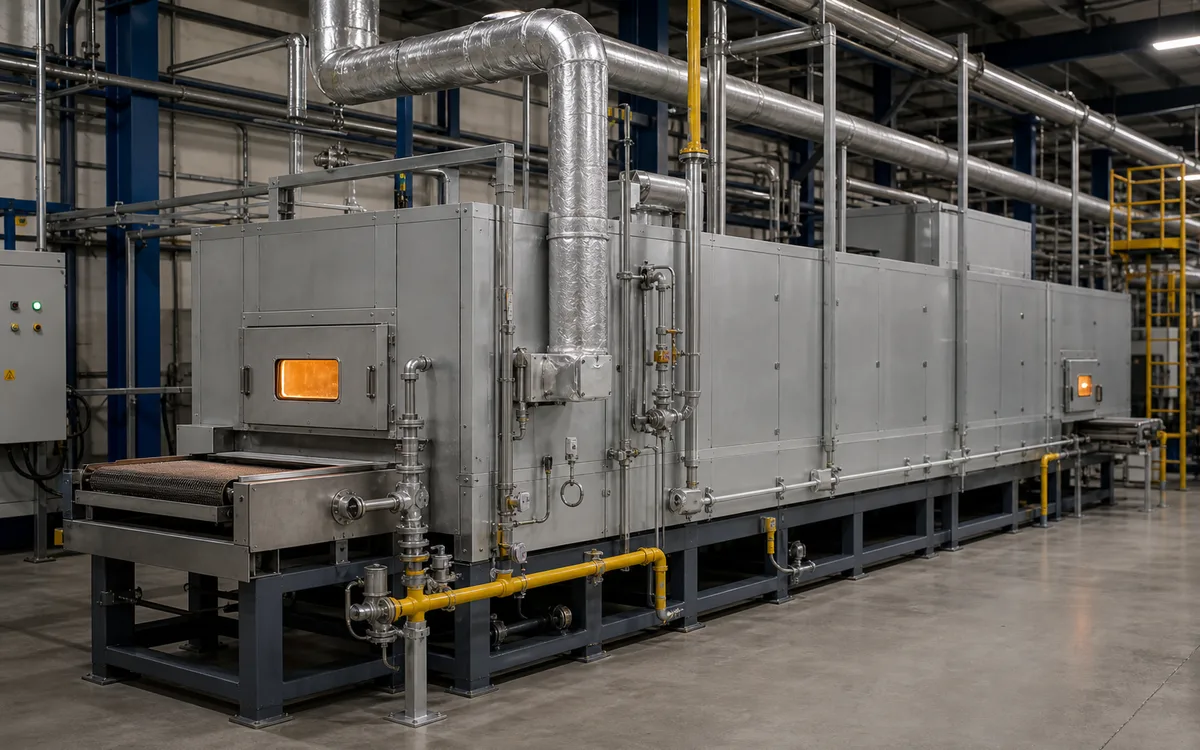

Burner Support
For heat-air equipment, burners, and furnace support where inlet path and site space need to be checked together.

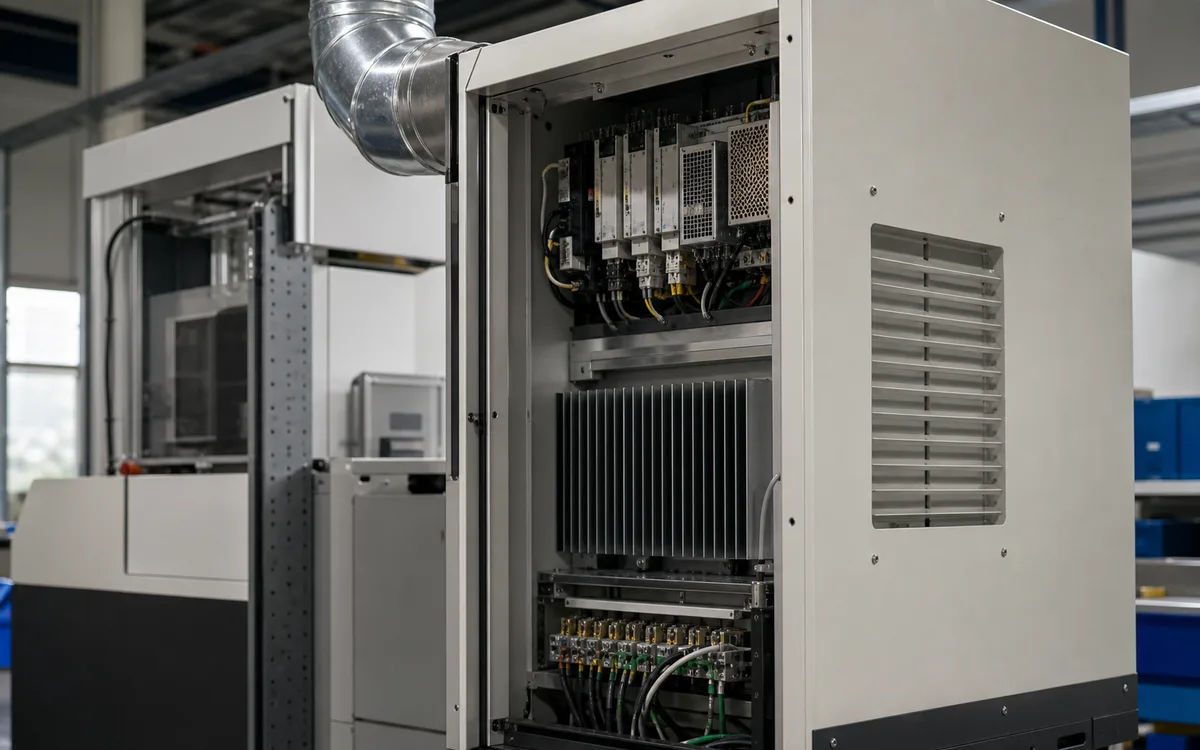

Cooling and Air Supply
Can be used for equipment cavities, local heat sources, and compact ducts.
Product Strengths
Impeller, motor, bearing support, and housing structure all influence long-term stability and installation experience.
Aluminum Alloy Impeller
The integrated aluminum alloy impeller is lighter than common steel-plate structures while keeping strength and corrosion resistance. It helps reduce starting load and supports stable operation.
Copper Winding Motor
Copper windings provide stable conductivity and help control heat rise and energy loss during long operating hours.
Bearing Support
Wear-resistant bearings and stable rotor support help reduce vibration and noise in continuous operation or frequent start-stop conditions.
Coated Housing
The thickened housing and base provide structural support, while the coated surface helps improve rust and corrosion resistance for workshop use.
Models and Parameters
Use the table as an initial reference. Final selection should be confirmed according to actual working conditions.
CZR-PT Series
Common model parameter range
- 180 - 1100W
- Power
- 600 - 1380m3/h
- Airflow
- 1100 - 2600Pa
- Pressure
| Model | Power | Voltage | Speed | Airflow | Pressure |
|---|---|---|---|---|---|
| CZR-180 | 180W | 220V | 2850r/min | 600m3/h | 1100Pa |
| CZR-250 | 250W | 220V | 2850r/min | 660m3/h | 1200Pa |
| CZR-370 | 370W | 220/380V | 2850r/min | 840m3/h | 2100Pa |
| CZR-550 | 550W | 220/380V | 2850r/min | 900m3/h | 2200Pa |
| CZR-680 | 680W | 220/380V | 2850r/min | 1080m3/h | 2300Pa |
| CZR-750 | 750W | 220/380V | 2850r/min | 1260m3/h | 2400Pa |
| CZR-900 | 900W | 220/380V | 2850r/min | 1320m3/h | 2500Pa |
| CZR-1100 | 1100W | 220/380V | 2850r/min | 1380m3/h | 2600Pa |
CZR-180 180W 600m3/h 1100Pa
- Voltage
- 220V
- Speed
- 2850r/min
CZR-250 250W 660m3/h 1200Pa
- Voltage
- 220V
- Speed
- 2850r/min
CZR-370 370W 840m3/h 2100Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-550 550W 900m3/h 2200Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-680 680W 1080m3/h 2300Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-750 750W 1260m3/h 2400Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-900 900W 1320m3/h 2500Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
CZR-1100 1100W 1380m3/h 2600Pa
- Voltage
- 220/380V
- Speed
- 2850r/min
Parameters are for initial selection reference. Actual model, configuration, and suitability should be confirmed through communication.
Interface and Mounting Dimensions
Check the inlet, outlet, motor, housing, and base first. Then switch by power to review front and side mounting dimensions.
Interface and Part Identification
The numbered marks help identify the inlet, outlet, motor, housing, and base before checking the installation size.
- 1 Motor
- 2 Housing
- 3 Inlet / Suction Port
- 4 Outlet
- 5 Base
Mounting Dimensions by Power
Switch the power tabs to update the front and side dimension values.
400mm 146mm 135mm 245mm 90mm 120mm 190mm
280mm 450mm 150mm 230mm 65mm 95mm 75mm 105mm 150mm 75mm 105mm 75mm 105mm 75mm 105mm 75mm 105mm 75mm 105mm 150 mm is the center distance to the opposite mounting hole.
Dimensions are for space reservation and duct connection reference. Final installation should be checked against the actual product and confirmed dimensions.
